The high speed capability of this range allows it to compete with expensive rotary fillers whilst having no change parts, being simple and flexible and not carrying the high price tag of rotaries. The machine can be purchased with 2 to 10 heads but extra heads can be added at a later date so that it can be expanded as your production requirements increase.

The 10 head versions are available in a standard in line configuration with gates or a with a dual conveyor “cross push”

system that eliminates indexing time and creates very high speeds.

Features

        • Colour touch screen for fast simple adjustment of settings

        • Settings for each container are stored for quick recall and set up

        • Displays bottles per minute and total bottles produced

        • Servo drives give fast and accurate fill and container handling

        • 1 and 2 speed fill modes - Useful for foaming and viscous liquids

        • Diving (bottom up) or in neck fill modes

        • Positive shut off nozzles - Eliminates dripping

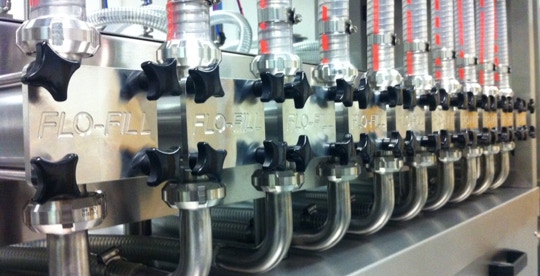

        • Changeable nozzles - Different styles and sizes for neck or dive filling

        • Built in header tank and level controls

        • 6000mm Hygienic style conveyor with multi stage variable speed for stable container handling

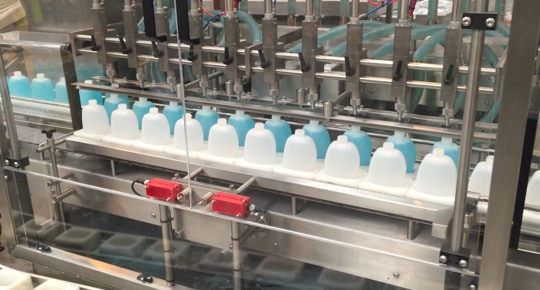

        • Neck clamp system for perfect nozzle and neck alignment

        • 10ml to 5lt fill range

        • Up to 150 BPM

        • Quick washout and change over

        • Modular design allows more filling heads to be added at a later date (max 10).

        • No tools required

        • Compact footprint

        • Services: Electrical - 415V 3ph / Compressed Air - 80 psi
